Chiller Hinged Door With Plinth Block

Chiller Hinged Door With Plinth Block

 820.00 Excluding Tax (Based on your shipping address & country)

This hinged cold room door is built for durability and excellent thermal insulation, ensuring reliable performance in both preservation and freezer chambers. It features an 80mm high-density CFC-free polystyrene core coated with 1.5mm solid PVC in RAL 9002, with a thermal break PVC frame and plinth block for adaptable installation.

For custom dimensions, please contact us for a personalized quote.
This product is referred to as an Ex-work product. For further information click here.

  • Total

SKU: STPTP80PB Category: Tags: ,

Description

The Chiller Hinged Door with Plinth Block is designed to deliver high durability, excellent insulation, and reliable performance for cold rooms operating at temperatures down to 0°C. Built with an 80 mm high-density, CFC-free polystyrene foam core and coated with 1.5 mm solid PVC in RAL 9002, this door provides maximum resistance to mechanical stresses while ensuring long-lasting protection and hygiene.

A thermal break PVC frame (110 mm width / 45 mm depth) prevents heat bridges and offers exceptional impact resistance, ensuring energy efficiency and structural stability. The door is available with a plinth block or sweeper gasket for enhanced sealing, featuring a double-extrusion tubular EPDM gasket that combines flexibility at curves with strength at the base for superior airtightness.

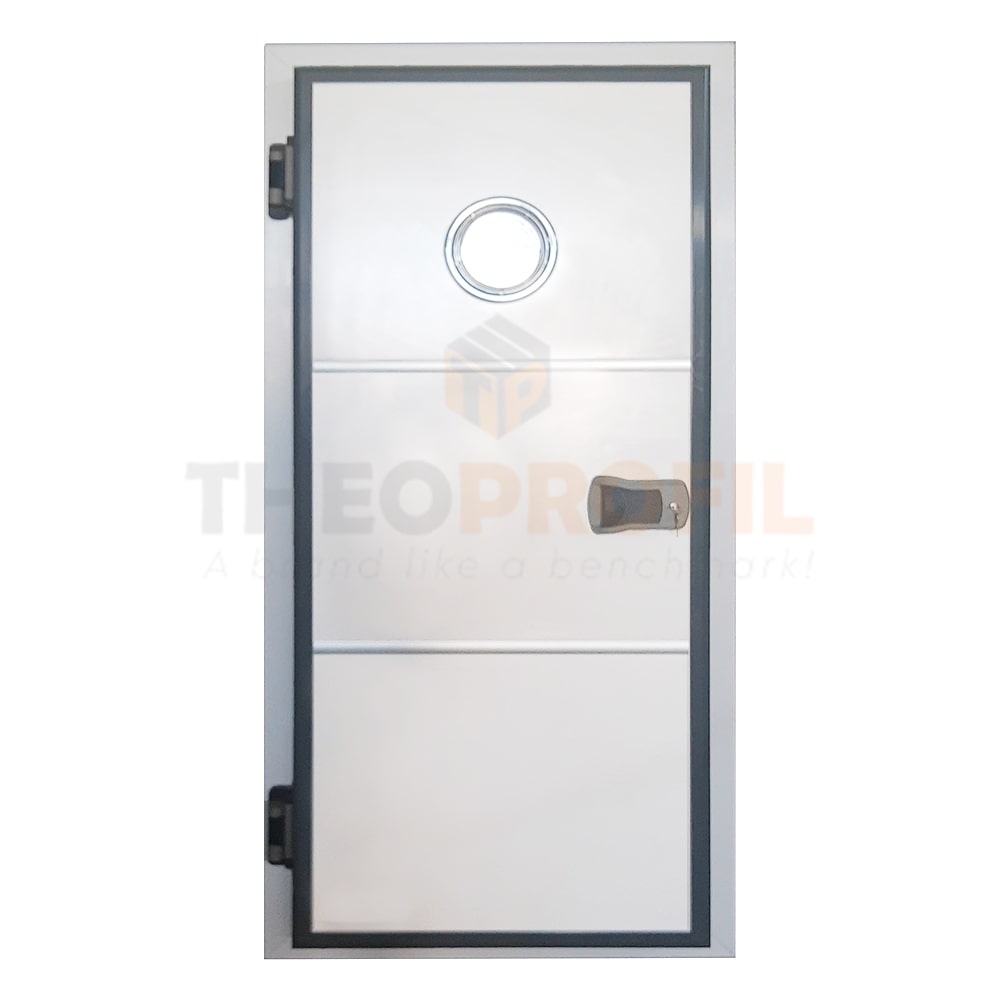

Heavy-duty hinges guarantee smooth operation and durability, supporting up to 80 kg with two hinges and 120 kg with three hinges. Adjustable vertically, horizontally, and in depth, the hinges come with a self-closing system suitable for both positive and negative temperature chambers. Optional features such as a panic lock (with internal release and two keys) and round porthole further enhance safety and functionality.

With maximum available dimensions of 1400 x 2050 mm and compatibility with cold room panels of 80 mm to 140 mm thickness, this hinged door is a reliable and versatile choice for professional refrigeration environments. Each unit is supplied with complete mounting materials and clear installation instructions.


On request, the hinged door can also be manufactured as a Fridge Hinged Door with rail passage, specially designed for meat transport. It features a lintel with a flexible PVC cover for proper sealing, with default passage dimensions of 28x64cm. Custom dimensions are available upon request.

Read our online catalogues

Additional information

Color

RAL 9002

Operating Temperature

Up to 0°C

Door Blade thickness

80 mm, 100 mm

Perimetral gasket

Double extrusion (Soft at the curve and hard at the base) tubular EPDM gasket for better sealing

Hinges

Max capacity 80kg with two hinges and 120Kg with three hinges. Vertical/horizontal/top/ down adjustment with self-closing system. For positive/negative temp chambers.

Door Frame

Standard: Thermal break PVC frame, 110mm width and 45mm depth, with high impact resistance., Heavy-duty: Thermal break PVC frame, extra reinforced, with 130mm width, 45mm depth, and 4.5mm material thickness, designed for high impact resistance., Comes with a counter frame included in the standard equipment (85mm width, 5.5mm thickness)., Suitable for installation on panels from 40mm to 200mm. Features concealed fixing on the outside and visible fixing on the inside.

Thickness of panel/brick wall

80mm, 100mm, 120mm, 140mm

Country of origin

Made in Greece

Estimating Time of Construction

4 days

Lock

Equipped with internal emergency release (panic case). Includes 2 keys (Not included in the standard equipment)

Porthole

Round (Not included in the standard equipment)
